Category 6a & Co-axial Cable Installation

I spent several weeks running Category 6a (CAT6a) network cable and co-axial satellite/antenna cable throughout the entire house. This involved running it through joists, over joists, through certain sections of wall and terminating in each room. The idea is to run all this cable back to one central location downstairs in the return, where a wall-mounted cabinet will interconnect all rooms. This will allow for the distribution of internet to each room, as well as numerous other media options like HD video, satellite feeds, CCTV, HDMI sources, WIFI etc.

CAT6a cable allows network speeds of up to 10GBASE-T (10-Gigabit) and each room receives at least two cables. Each room is also supplied with two CT100 co-axial cables, allowing the sharing of both satellite feeds and terrestrial digital TV. There is also five co-axial feeds to the attic to supply an antenna and satellite dish.

Alarm cable was also run to every window, outside door, control panel location etc.

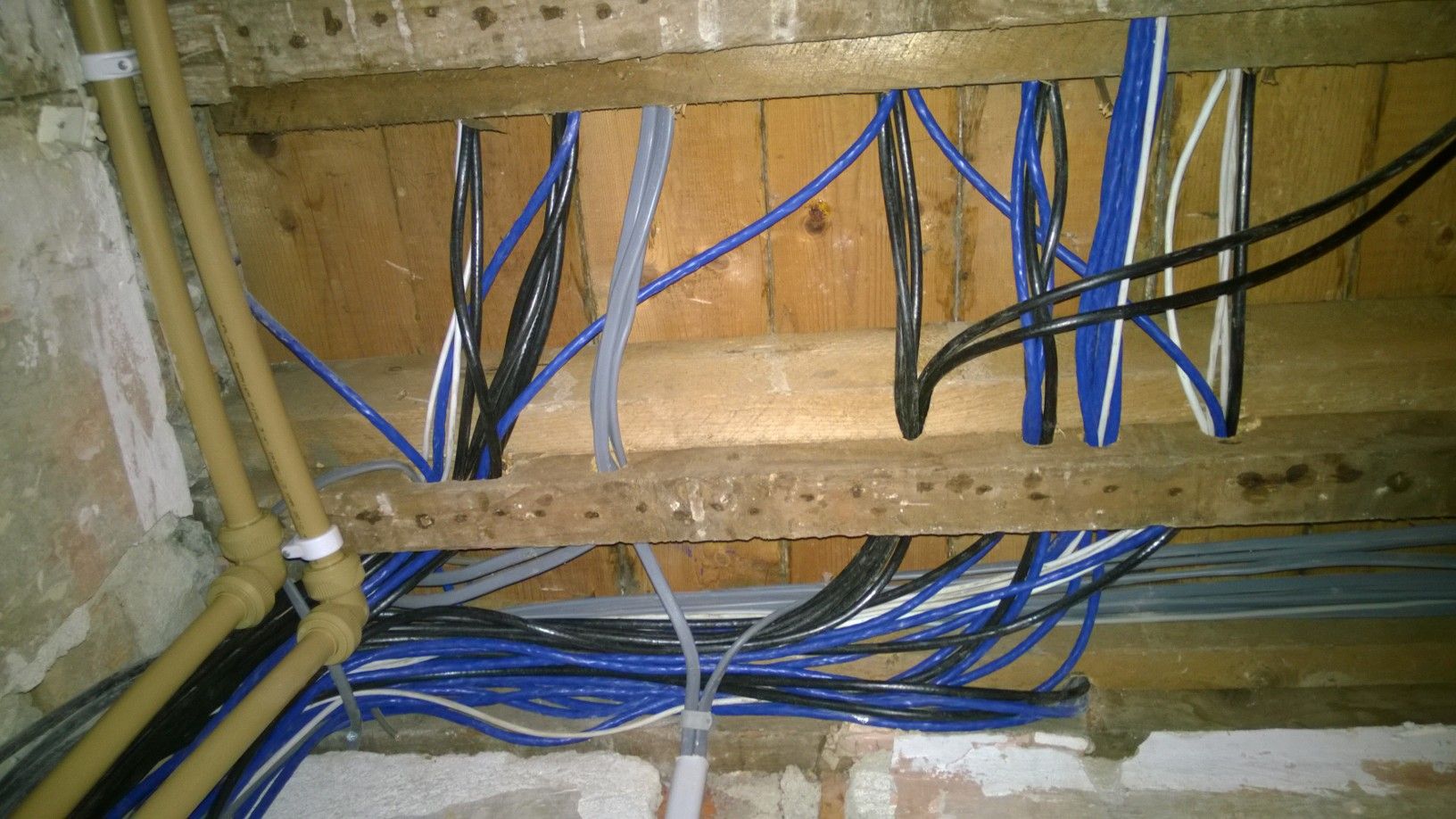

Running the feeds to the attic (black cable):

Top floor bedroom:

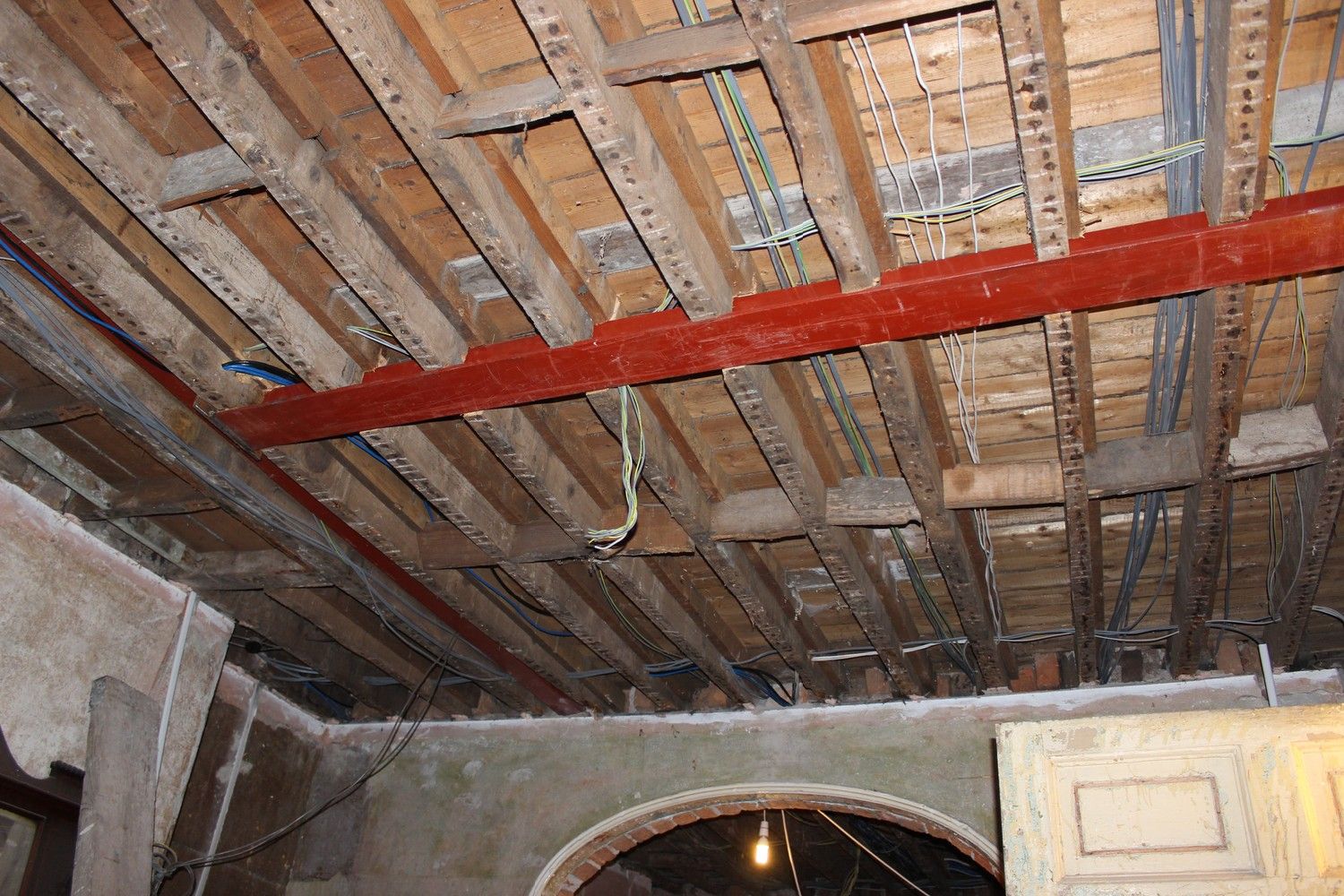

First floor living room has the most cable runs, as the main TV will be mounted within the archway. The corner beside the TV will have a small cabinet, housing amplifier, video sources etc. There are also speaker cables run through this room for 5.1 surround sound (6.1/7.1 would be too intrusive with the amount of speakers required):

TV location has numerous power, CAT6a, speaker and co-axial runs:

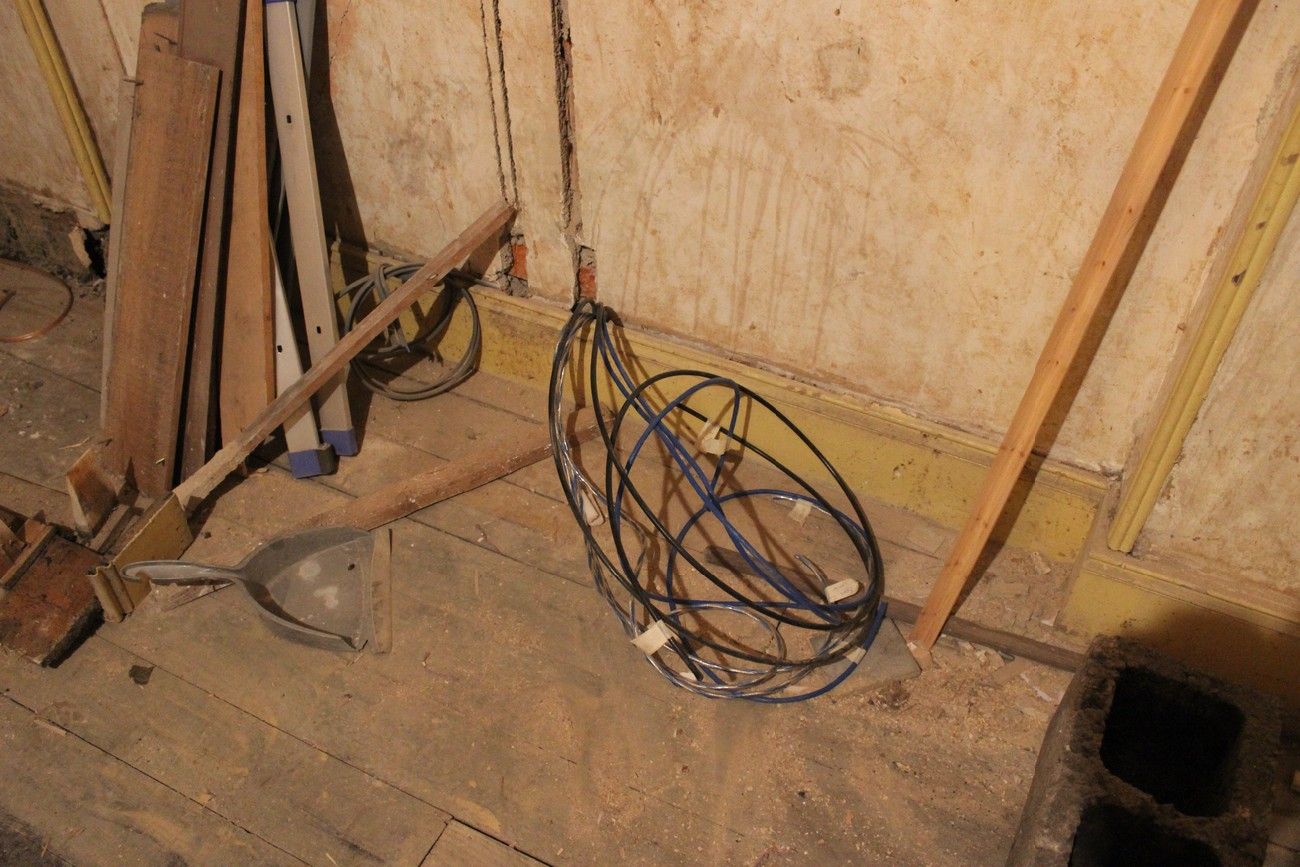

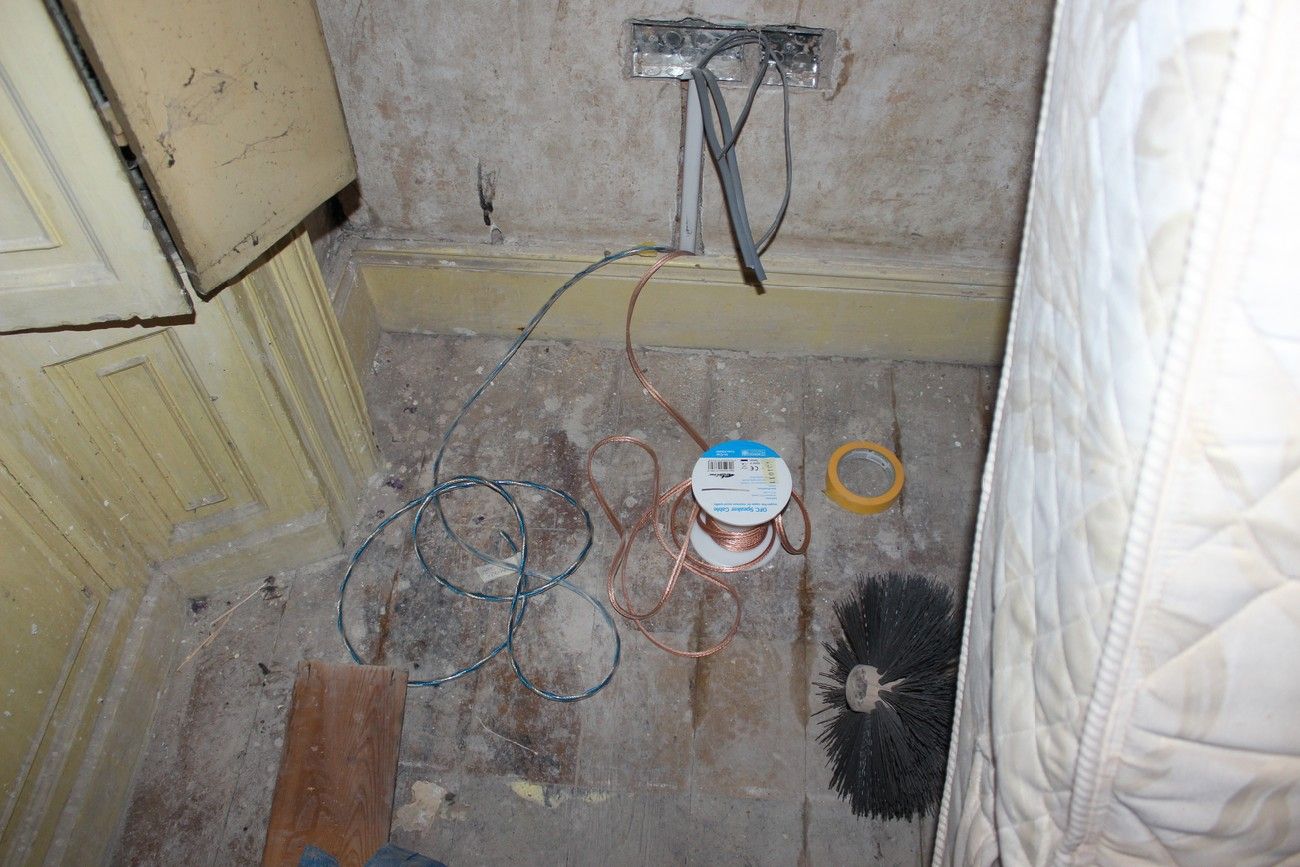

First floor rear bedroom:

The hallway:

Ground floor dining room:

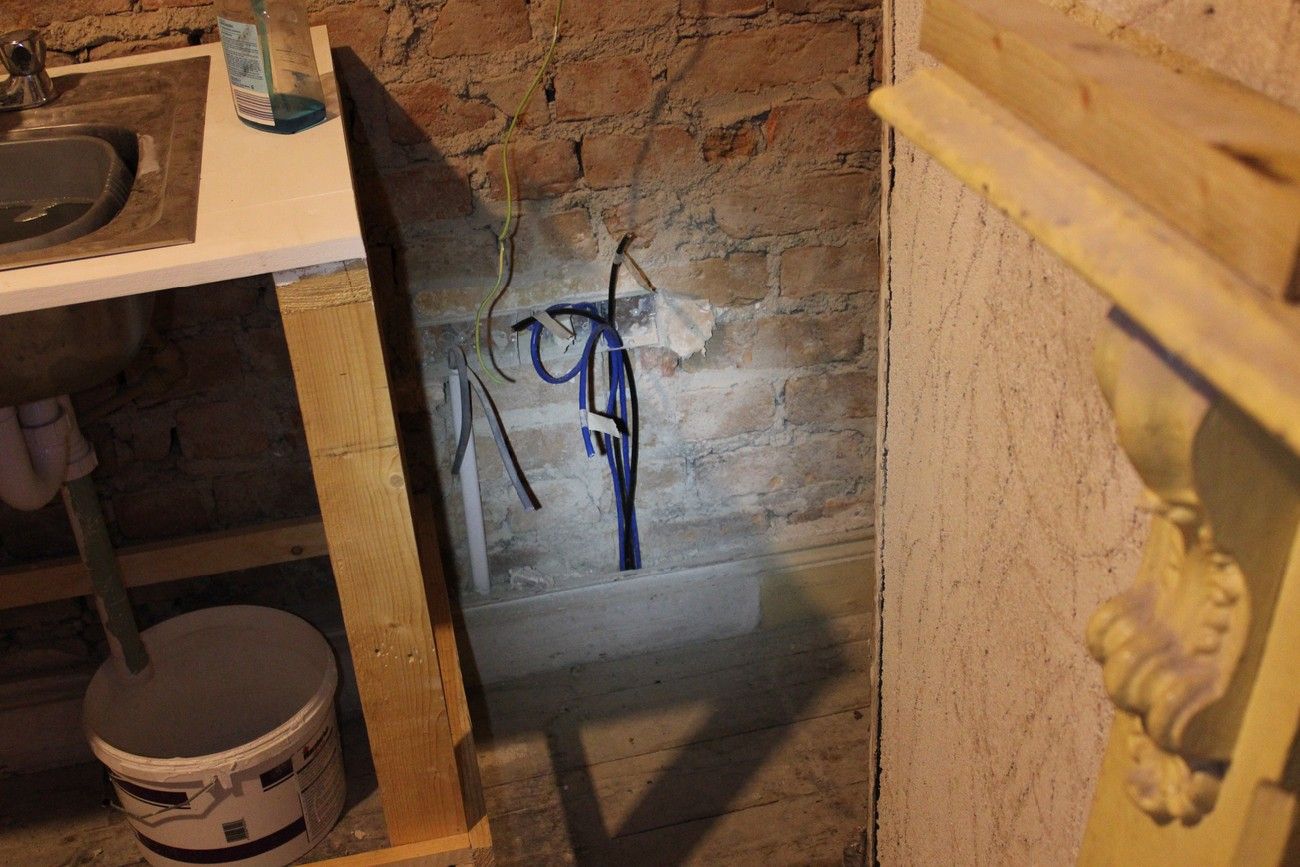

The kitchen:

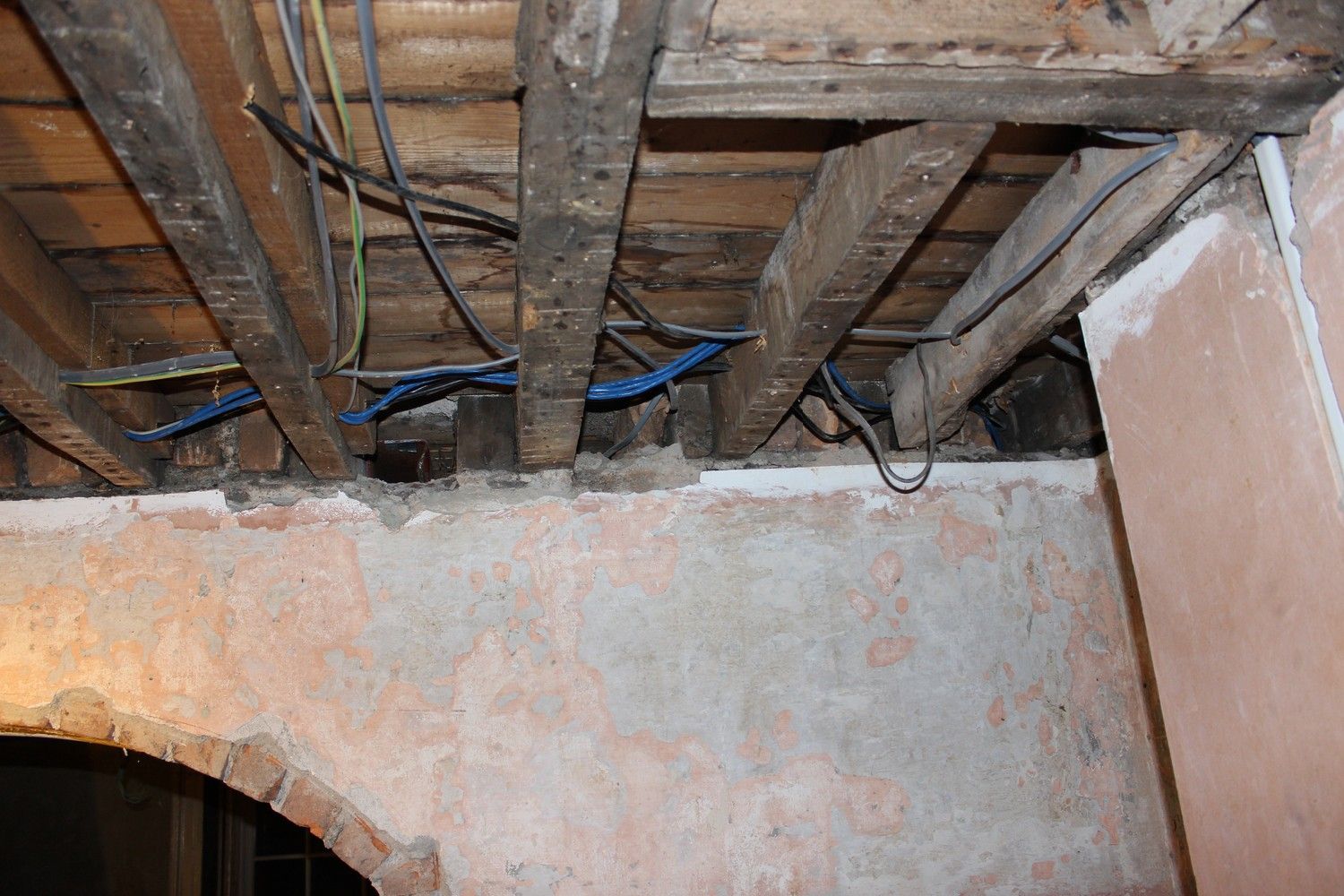

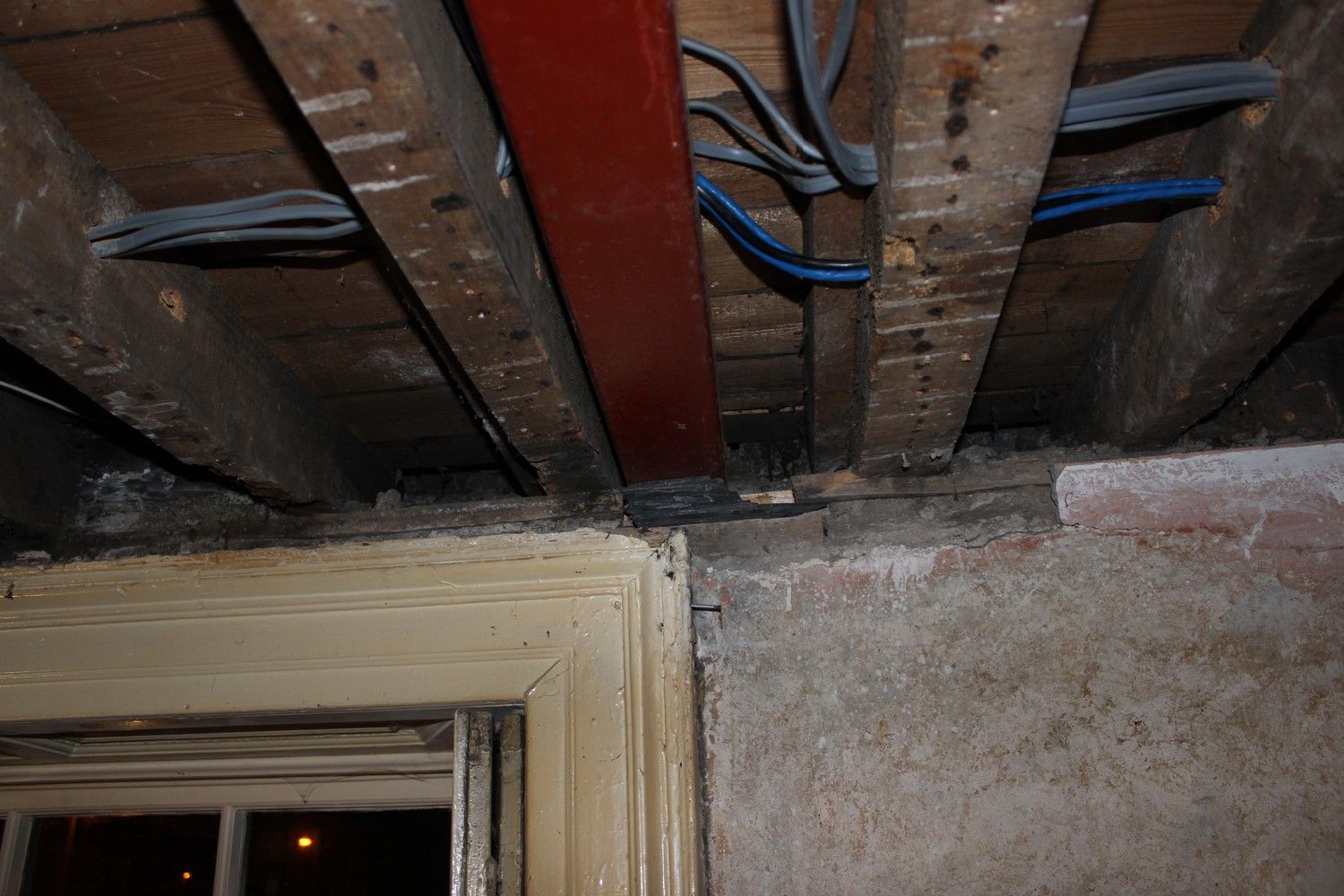

Feeds throughout the house:

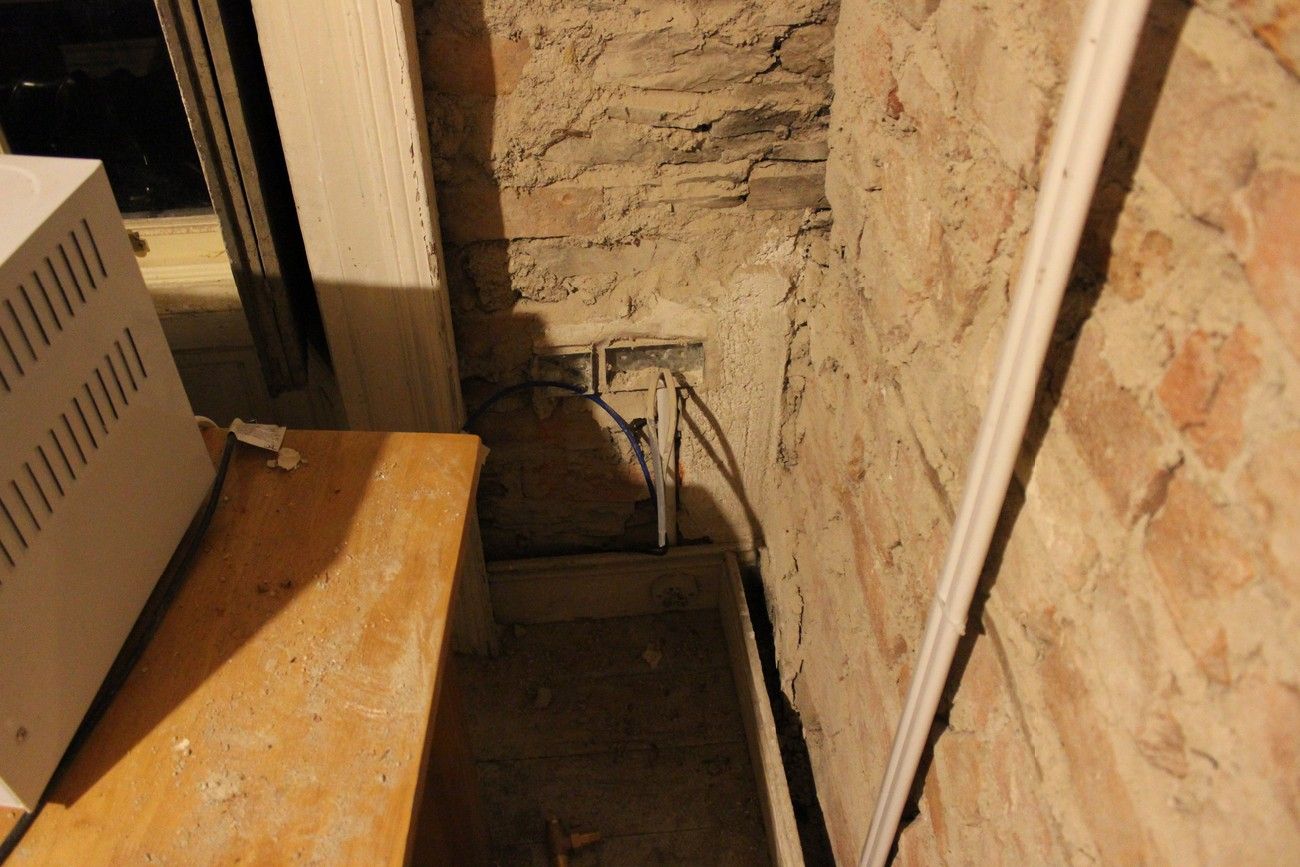

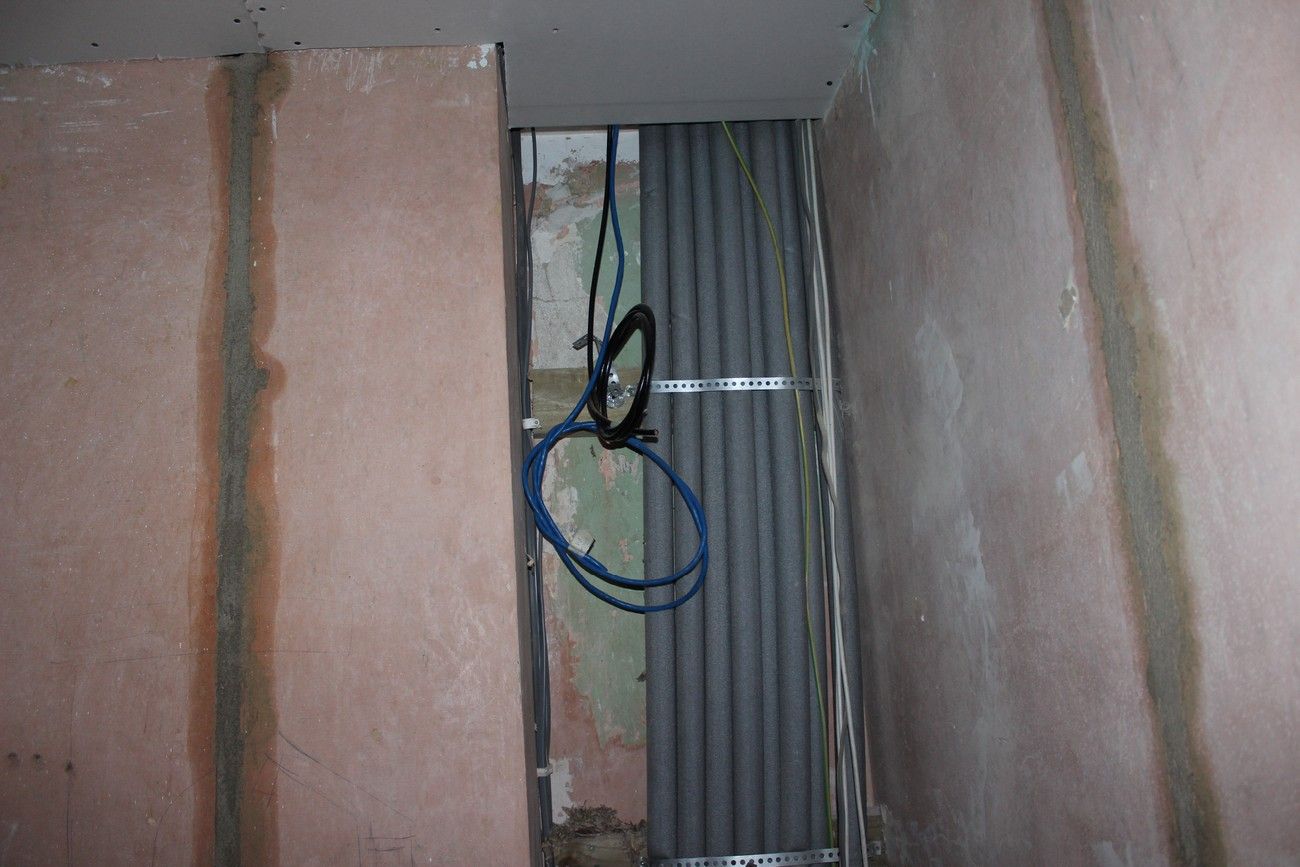

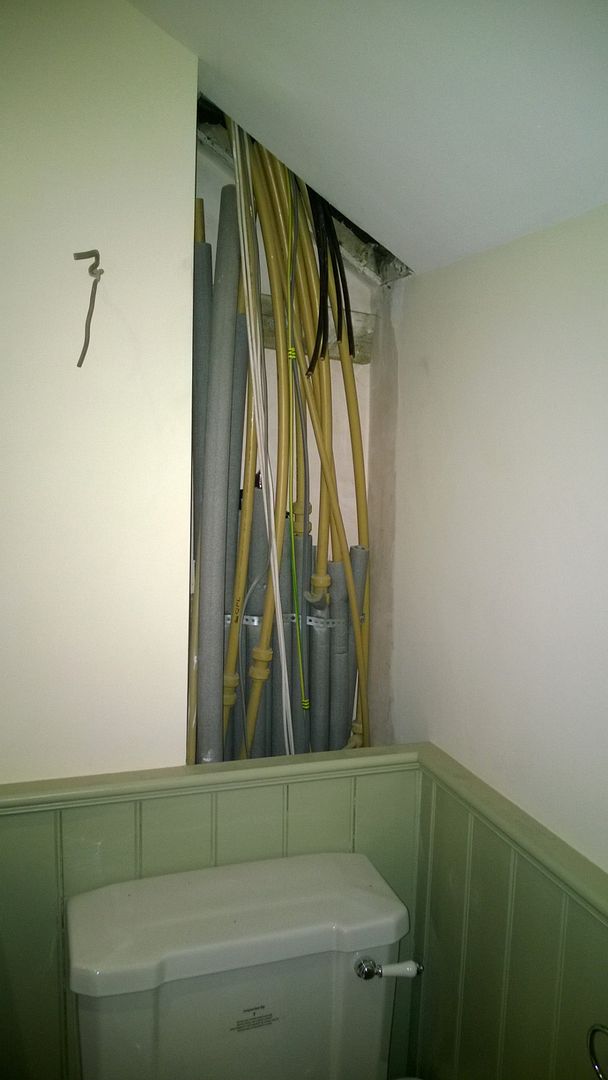

The main access hole from the house to the return:

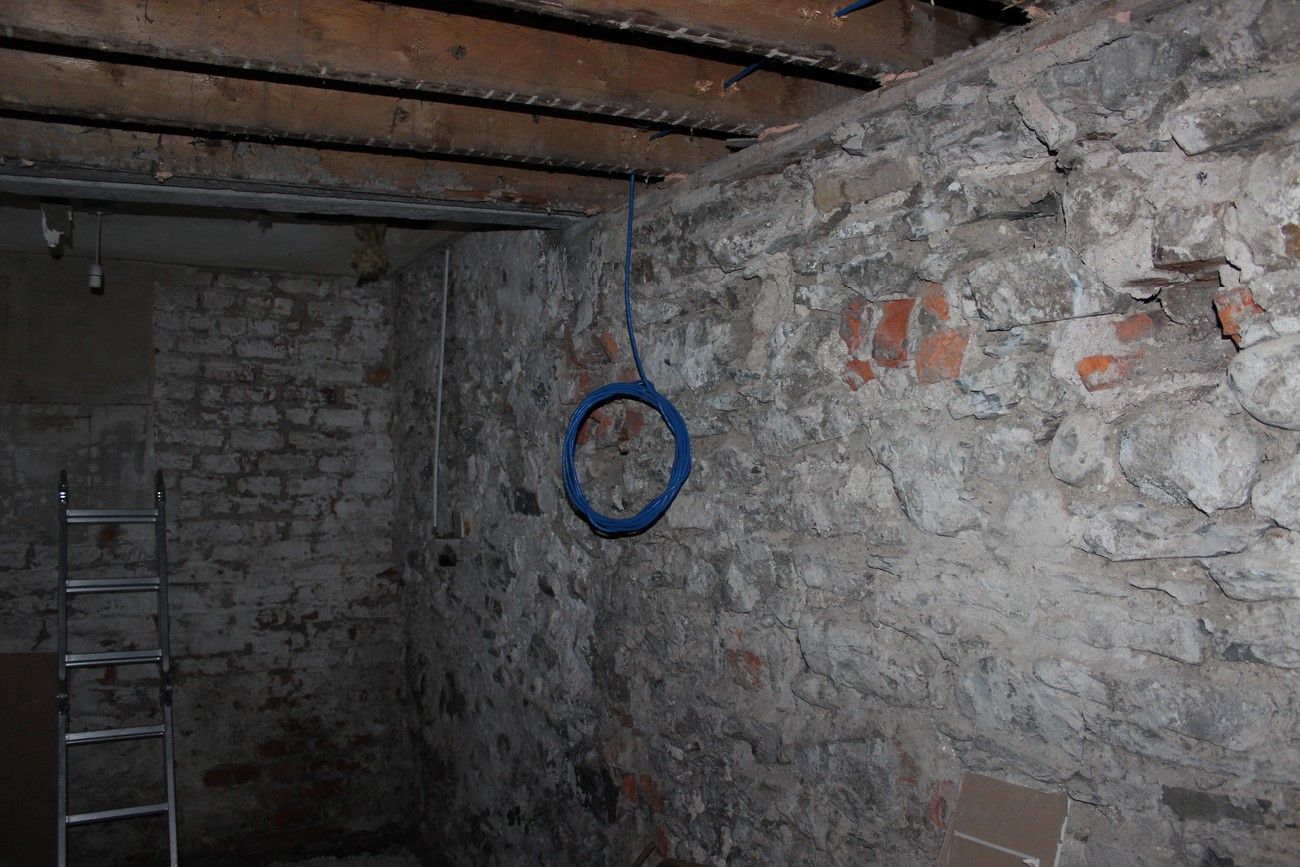

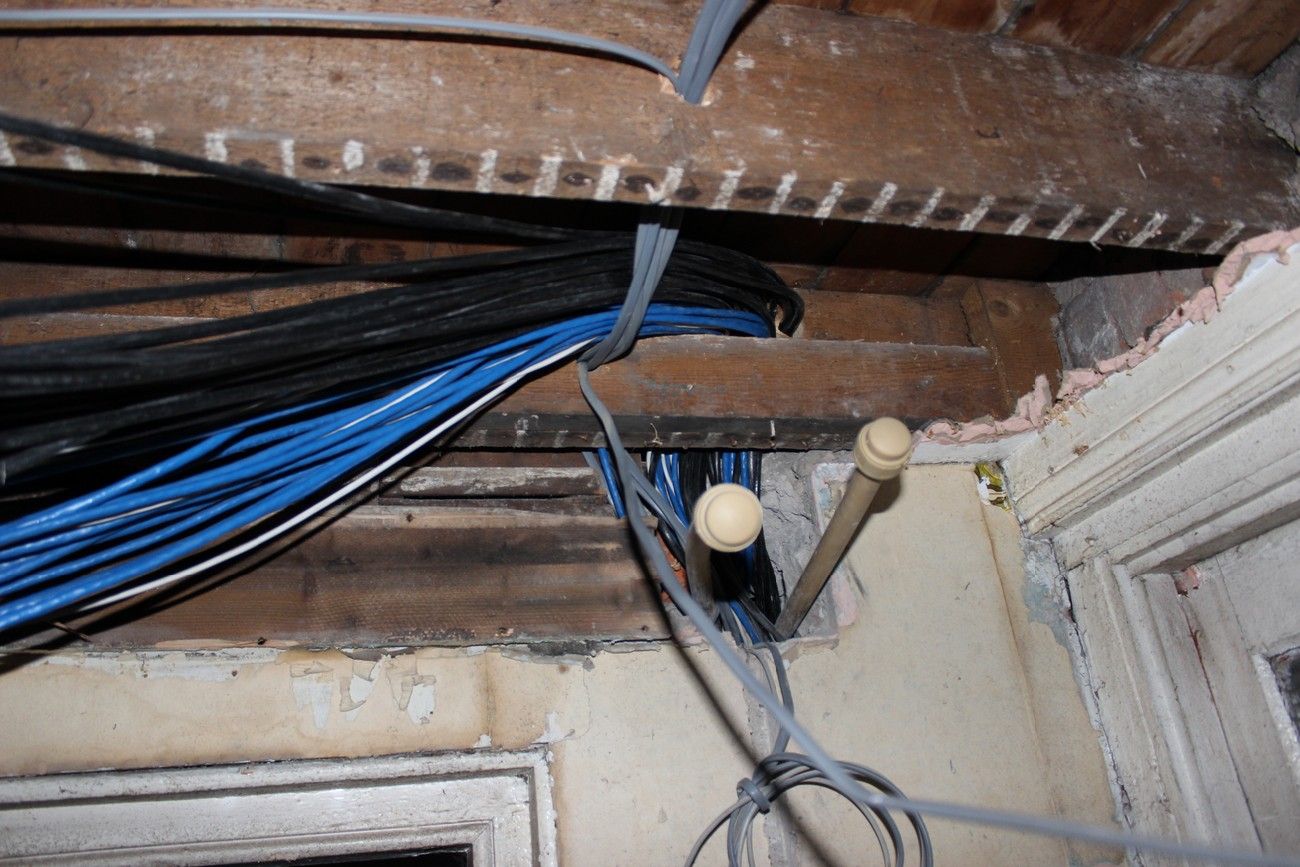

All cables as mentioned terminate in the downstairs of the return, to become the utility room:

The automatic roller door was finally installed and works very well. The steel beam will be painted to match the door:
